Debugging Visual Metaphors
My previous post commented on the unsatisfactory state of mainstream IDEs. Continuing with this theme, I want to focus on one of my long term pet peeves - debugger UIs.
Donald Norman, in his book The Design of Everyday Things, makes the point that truly good designs are easy to use, because they make it intuitive how they should be used - in his words, they afford a usage pattern.
How do you describe the state of a running program on a whiteboard? You draw the stack. So it seems to me that a stack is the natural visual metaphor for a debugger. Here is a screen shot of our new Hopscotch-based debugger, which will soon replace the Squeak debugger in the Newspeak IDE.
You can see that the debugger looks like a stack trace. Every entry in the stack trace can be expanded into a presenter that shows that stack frame - including the source code for the method in question, and a view of the state of the frame - the receiver, the variables in the activation, the top of the evaluation stack for expressions (i.e., the last value computed).
Of course, this isn’t my idea. It’s another one of those great ideas from Self, as evidenced in this screenshot:
we already stole the idea from Self once before, in Strongtalk, as shown here.
One of the nice properties of the stack oriented view is that you can view multiple stack frames at once, so you can see and reason about a series of calls, much as you would at your whiteboard.

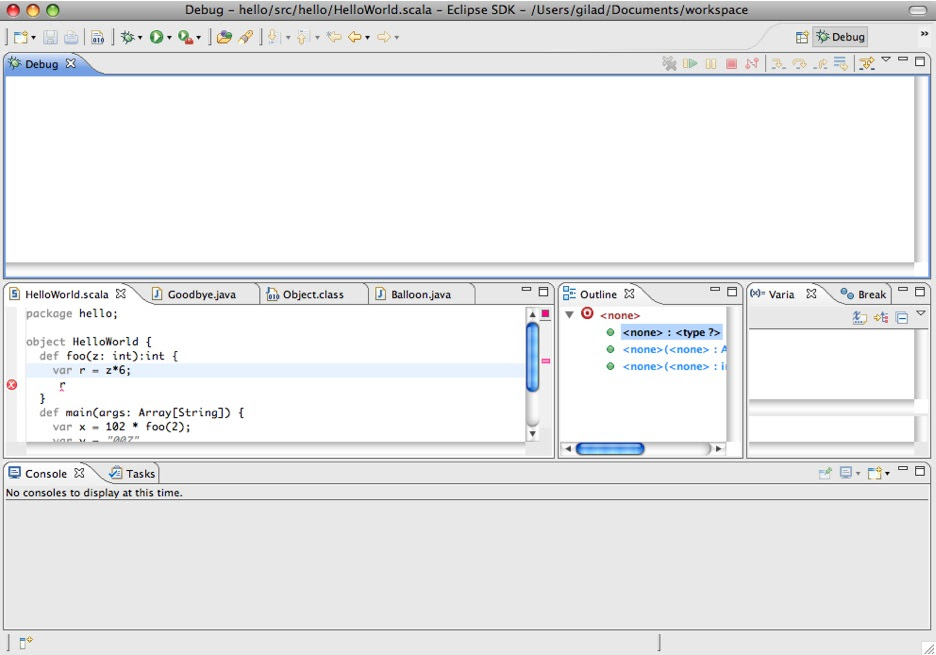

In contrast, most IDEs (even Smalltalk IDEs) show a multi-pane view, with one pane showing the source for the current method (in its file, naturally), one pane showing the state of the current frame, and one showing the stack trace.
You can’t easily see the state of the caller of the current method, or its code, while simultaneously looking at the current method (or another activation in the call chain). And if you modify the current method’s code (assuming you can do that at all), you’re likely locked into a mode, and can’t see the other frames unless you save or cancel your changes.
Hopscotch GUIs are inherently non-modal - so you can modify any one of the methods you’re viewing, and then link to another page to view, say, the complete class declaration, all without opening another window and without having to save or lose your work.
The fact that one rarely needs more than one window is one of the things I really like about Hopscotch. There’s no need for a docking bar, or tabs for that matter. Tabs are popular these days, but they don’t scale: they occupy valuable screen real estate, and beyond half a dozen or so become disorienting and unmanageable.
Hopscotch does better than the mainstream, and better than previous efforts like Strongtalk or Self, partly because of its navigation model, and partly because of the inherent compositionality of tools built with it. The fact that I can move from the debugger to the class browser in the same window did not require special planning - it’s inherent in the way Hopscotch based tools behave - they can be composed by means of a set of combinators. Compositionality is one of the most crucial, and most often overlooked, properties in software design; it’s what sets Hopscotch apart.
You can find out more about Hopscotch in this paper and on Vassili ‘s blog.
The design of debugger UIs is one example of something that needs to change in modern IDEs. There are others of course. Many are related to the basic problems of modality, navigation and proliferation of panes/windows noted above. Overall, your typical IDE UI is too much like the control panel of a B-52 bomber or an Apollo space capsule: a mind boggling array of switches, gauges, controls and wizards that interact with each other in myriad and confusing ways. This is neither necessary nor desirable. Like explicit memory management and primitive types, in time we will progress beyond these.
Donald Norman, in his book The Design of Everyday Things, makes the point that truly good designs are easy to use, because they make it intuitive how they should be used - in his words, they afford a usage pattern.
How do you describe the state of a running program on a whiteboard? You draw the stack. So it seems to me that a stack is the natural visual metaphor for a debugger. Here is a screen shot of our new Hopscotch-based debugger, which will soon replace the Squeak debugger in the Newspeak IDE.
You can see that the debugger looks like a stack trace. Every entry in the stack trace can be expanded into a presenter that shows that stack frame - including the source code for the method in question, and a view of the state of the frame - the receiver, the variables in the activation, the top of the evaluation stack for expressions (i.e., the last value computed).
Of course, this isn’t my idea. It’s another one of those great ideas from Self, as evidenced in this screenshot:
we already stole the idea from Self once before, in Strongtalk, as shown here.
One of the nice properties of the stack oriented view is that you can view multiple stack frames at once, so you can see and reason about a series of calls, much as you would at your whiteboard.
In contrast, most IDEs (even Smalltalk IDEs) show a multi-pane view, with one pane showing the source for the current method (in its file, naturally), one pane showing the state of the current frame, and one showing the stack trace.
You can’t easily see the state of the caller of the current method, or its code, while simultaneously looking at the current method (or another activation in the call chain). And if you modify the current method’s code (assuming you can do that at all), you’re likely locked into a mode, and can’t see the other frames unless you save or cancel your changes.
Hopscotch GUIs are inherently non-modal - so you can modify any one of the methods you’re viewing, and then link to another page to view, say, the complete class declaration, all without opening another window and without having to save or lose your work.
The fact that one rarely needs more than one window is one of the things I really like about Hopscotch. There’s no need for a docking bar, or tabs for that matter. Tabs are popular these days, but they don’t scale: they occupy valuable screen real estate, and beyond half a dozen or so become disorienting and unmanageable.
Hopscotch does better than the mainstream, and better than previous efforts like Strongtalk or Self, partly because of its navigation model, and partly because of the inherent compositionality of tools built with it. The fact that I can move from the debugger to the class browser in the same window did not require special planning - it’s inherent in the way Hopscotch based tools behave - they can be composed by means of a set of combinators. Compositionality is one of the most crucial, and most often overlooked, properties in software design; it’s what sets Hopscotch apart.
You can find out more about Hopscotch in this paper and on Vassili ‘s blog.
The design of debugger UIs is one example of something that needs to change in modern IDEs. There are others of course. Many are related to the basic problems of modality, navigation and proliferation of panes/windows noted above. Overall, your typical IDE UI is too much like the control panel of a B-52 bomber or an Apollo space capsule: a mind boggling array of switches, gauges, controls and wizards that interact with each other in myriad and confusing ways. This is neither necessary nor desirable. Like explicit memory management and primitive types, in time we will progress beyond these.
